9AFB / 12AFB Series

Options

  • Rear shaft extension
  • Prepared for encoder
Technical data overview 9AFB / 12AFB series
Gearmotor Type

Nominal Speed
RPM


Terminal Voltage Volts
Nominal Current Amps
Power Output Watts
Nominal Torque
oz-in
Peak
Torque
oz-in
9AFB
3000
15
7.4
48
21
225
12AFB
3000
21.5
7.5
90
40
478

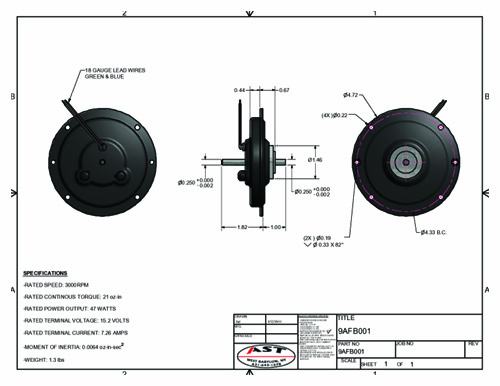

9AFB Dimensions

Click here to
download
pdf version
Click here to
download
pdf version

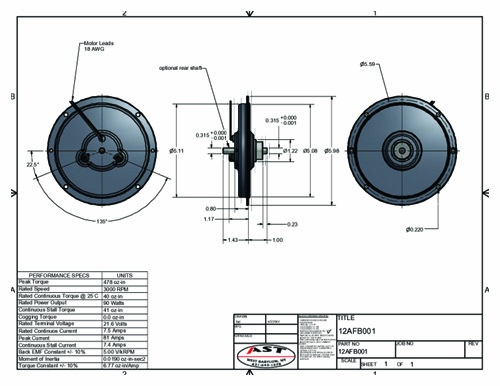

12AFB Dimensions
