6
AFG / 9AFG / 12AFG Series |
Gearmotor
Options
- Rear
Shaft Extension
- Prepared
for Encoder
|
|
| |
| Technical
data overview 6AFG series |
| Gearmotor
Type |
Output
Speed (RPM)
|
Motor Voltage Volts
|
Motor
Current Amps
|
Gear
Ratio
|
Continuous
Torque in lbs
|
Peak
Torque in lbs
|
Tach
output Voltage w/1000 RPM
|
| 6AFG/15:1 |
215
|
12
|
2
|
15:1
|
3.5
|
12
|
|
| 6AFG/50:1 |
64
|
12
|
2
|
50:1
|
12
|
32
|
|
| 6AFG/100:1 |
32
|
12
|
2
|
100:1
|
24.3
|
50
|
|
|
Technical
data overview 9AFG series |
| Gearmotor
Type |
Output
Speed (RPM)
|
Motor Voltage Volts
|
Motor
Current Amps
|
Gear
Ratio
|
Continuous
Torque in lbs
|
Peak
Torque in lbs
|
Tach
output Voltage w/1000 RPM
|
| 9AFG/15:1 |
208
|
12.4
|
5.2
|
15:1
|
10
|
17
|
|
| 9AFG/25:1 |
125
|
12.4
|
5.2
|
25:1
|
17
|
27
|
|
| 9AFG/50:1 |
60
|
12.4
|
5.2
|
50:1
|
34
|
50
|
|
| 9AFGT/50:1 |
60
|
12.4
|
5.2
|
50:1
|
34
|
50
|
1
v/krpm
|
| 9AFGT/80:1 |
38
|
12.4
|
5.2
|
80:1
|
45
|
60
|
|
| 9AFG/100:1 |
31
|
12.4
|
5.2
|
100:1
|
54
|
60
|
|
9AFGT/100:1
|
31
|
12.4
|
5.2
|
100:1
|
54
|
60
|
1
v/krpm
|
| 9AFG/150:1 |
21
|
12.4
|
5.2
|
150:1
|
60
|
95
|
|
| 9AFGT/150:1 |
21
|
12.4
|
5.2
|
150:1
|
60
|
95
|
1
v/krpm
|
|
Technical
data overview 12AFG series
|
| Gearmotor
Type |
Output
Speed (RPM)
|
Motor Voltage Volts
|
Motor
Current Amps
|
Gear
Ratio
|
Continuous
Torque in lbs
|
Peak
Torque in lbs
|
Tach
output Voltage w/1000 RPM
|
| 12AFG/15:1 |
190
|
21
|
7
|
15:1
|
32
|
70
|
|
| 12AFG/25:1 |
123
|
21
|
7
|
25:1
|
55
|
150
|
|
| 12AFGT/25:1 |
123
|
19
|
7
|
25:1
|
55
|
150
|
3.6
v/krpm
|
| 12AFGT50:1 |
60
|
21
|
7
|
50:1
|
98
|
210
|
|
| 12AFGT/80:1 |
36
|
21
|
7
|
80:1
|
155
|
230
|
|
| 12AFG/100:1 |
30
|
21
|
7
|
100:1
|
190
|
240
|
|
12AFGT/100:1
|
30
|
21
|
7
|
100:1
|
190
|
240
|
3.6
v/krpm
|
| 12AFG/150:1 |
21
|
19
|
7
|
150:1
|
225
|
300
|
|
| 12AFGT/150:1 |
21
|
18
|
7
|
150:1
|
225
|
300
|
3.6
v/krpm
|
|
|
Click here to
download
pdf version
|

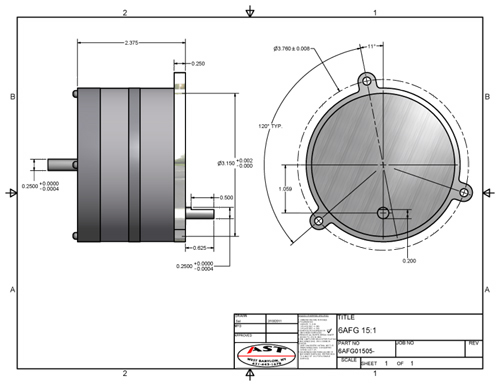

6AFG
Dimensions
|
 |
|
| |

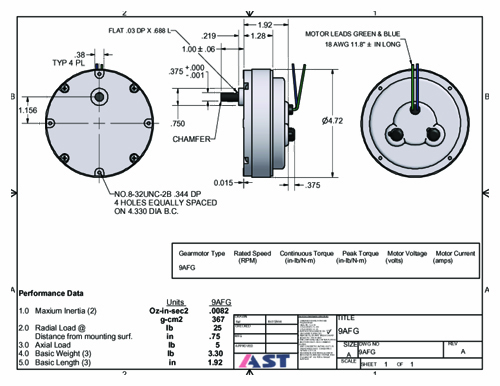

9AFG
Dimensions
|
Click here to
download
pdf version
|
 |
|
| |
Click here to
download
pdf version
|

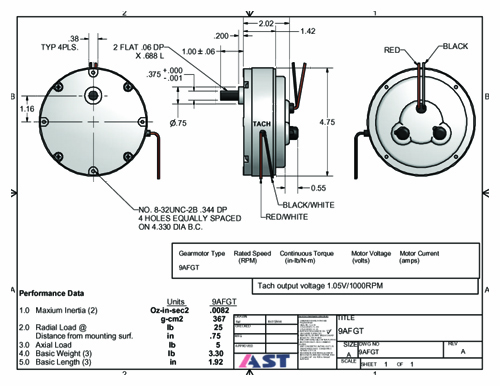

9AFGT
Dimensions
|
 |
|
| |

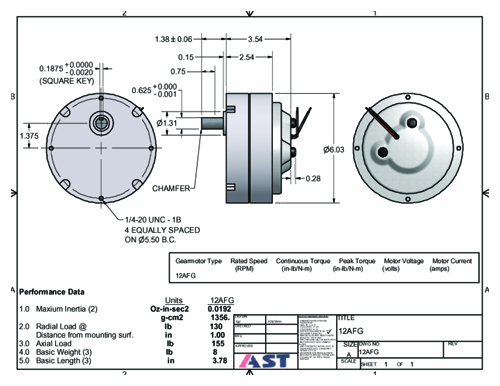

12AFG
Dimensions
|
Click here to
download
pdf version |
 |
|
| |
Click here to
download
pdf version |

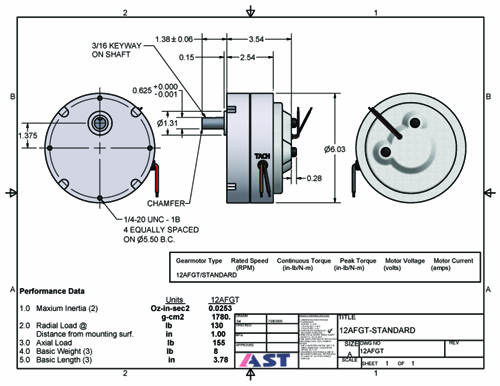

12AFGT
Dimensions
|
 |
|
