CDS80 / 100 / 120 / 150 Series Motors

Characteristics

  • Permanent-excited Synchronous Motor with 8 Poles
  • Compact Design
  • 3-4 Times Overload Capability/High Peak Torque
Technical data overview CDS series
Gearmotor Type
CDS80
CDS100
CDS120
CDS150
Rated Power
500 W - 1,5 kW
1,1k W - 3,7 kW
2,5 kW - 11,8 kW
4,8 kW -21 kW
Rated rpm
1000 - 6000
1000 - 6000
1000 - 6000
1000 - 6000
Rated Torque
3,7 Nm
7,2 Nm
16 Nm air-cooled
22 Nm water-cooled
30 Nm air-cooled
41 Nm water-cooled
Peak Torque
12 Nm
25 Nm
39 Nm
74 Nm
Voltage
24 -96 V DC /
110 - 560 V AC
24 -96 V DC /
110 - 560 V AC
24 -96 V DC /
110 - 560 V AC
24 -96 V DC /
110 - 560 V AC
Efficiency
Up to 87%
Up to 92%
Up to 92%
Up to 93,9%
Motorfeedback
Sin / Cos Sensor, Hall Sensors / Resolver
Sin / Cos Sensor, Hall Sensors / Resolver
Sin / Cos Sensor, Hall Sensors / Resolver
Sin / Cos Sensor, Hall Sensors / Resolver
Weight
2,8 Kg
5,5 Kg
11,2 Kg air-cooled
12,3 Kg water-cooled
19,3 Kg air-cooled
21 Kg water-cooled

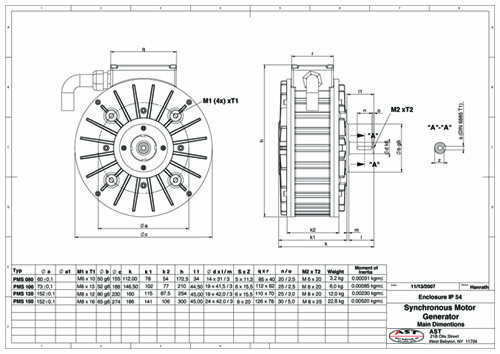

CDS Series Dimensions

Click here to
download
pdf version
