KN
Series |
- Compact
axial length, optimal torque/weight ratio possible in a high
performance dc servo motor
- With NdFeB
magnet material
- 0,13...
3,2 Nm (43... 1.000 W)
- Nominal
speed up to 5.000 rpm
- For high-dynamic
applications and/or exact regulations at large speed range
- Zero cogging
for smooth operation, even at crawling speed
- Available
with integrated tacho, optical encoder, failsafe brake and
precision gearhead
|
|
Technical
data overview KN series |
| |
|
|
KN06M4
|
KN09M4
|
KN09M4T
|
KN12M4
|
KN12M4T
|
KN12M4LR
|
KN16M4
|
| Nominal
Torque |
MN |
Ncm |
13,7
|
45
|
42
|
136
|
128
|
80
|
320
|
| Peak
Torque |
Mmax |
Ncm |
144
|
489
|
458
|
1438
|
1352
|
720
|
3500
|
| Normal
Speed |
nN |
min-1 |
3000
|
3000
|
3000
|
3000
|
3000
|
3000
|
3000
|
| Power
Output |
PN |
W |
43
|
141
|
132
|
426
|
401
|
250
|
1000
|
| Terminal
Voltage |
UN |
V |
17,3
|
30
|
28
|
46
|
46
|
24
|
128
|
| Nominal
Current |
IN |
A |
4,9
|
7,8
|
7,8
|
9,2
|
9,3
|
14,5
|
9,3
|
|
|
KN

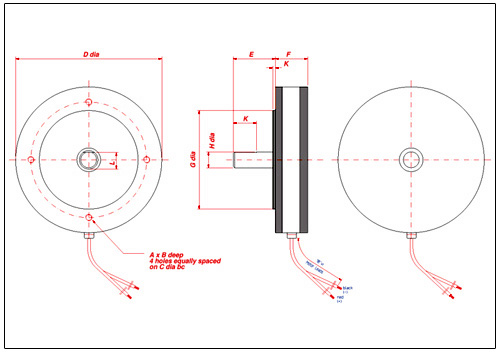

Dimensions
|
Click here to
download
pdf version
|
 |
|
|
|
|
|
